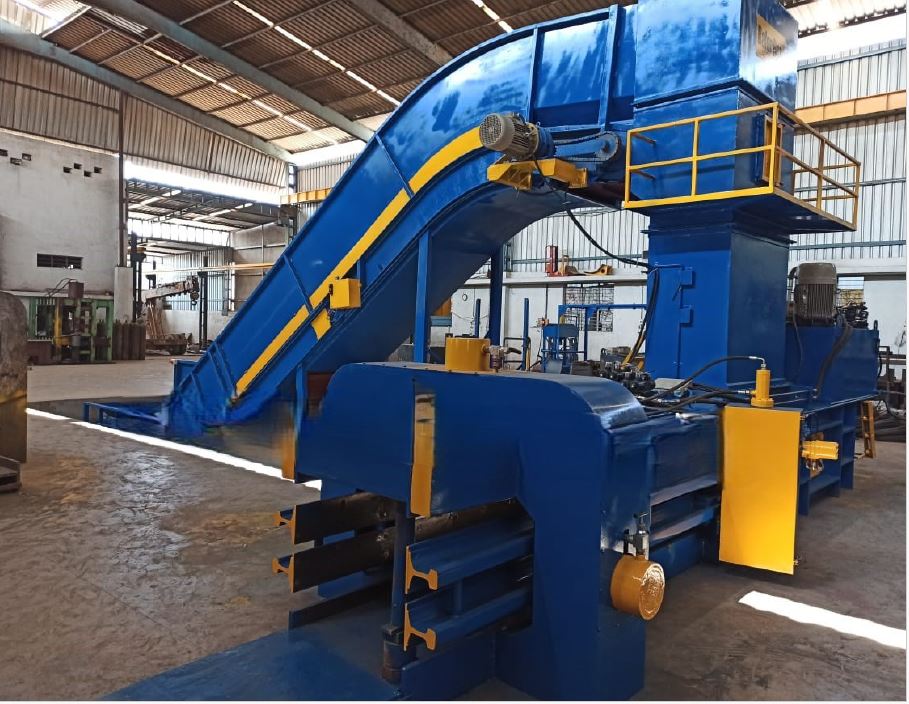

Continuous Auto Tie Scrap Baler Machine for Carrugated Scrap
4000000.0 INR/Unit
Product Details:
- Frame Type Welded Steel Frame
- Features Continuous Operation, Automatic Tying, Heavy Duty Construction
- Motor Power 2 x 22 kW Kilowatt (kW)
- Cooling System Oil Cooler
- Frequency 50 Hz Hertz (HZ)
- Machine Type Horizontal Auto Tie Baler
- Voltage 415 V Volt (v)
- Click to View more
X
Continuous Auto Tie Scrap Baler Machine for Carrugated Scrap Price And Quantity
- 4000000.0 INR/Unit
- 1 Unit
Continuous Auto Tie Scrap Baler Machine for Carrugated Scrap Product Specifications
- 7800 x 2000 x 2500 mm Millimeter (mm)
- 50 Hz Hertz (HZ)
- Oil Cooler
- 18000 kg Kilograms (kg)
- Industrial Blue
- Welded Steel Frame
- Electricity
- Powder Coated
- Continuous Operation, Automatic Tying, Heavy Duty Construction
- 2 x 22 kW Kilowatt (kW)
- Hydraulic
- Corrugated Scrap Baling
- CATB-3000C
- Three Phase
- HMI Touchscreen, Remote Diagnostics
- Hydraulic Compression
- PLC Control Panel
- Less than 68 dB db
- 5C-50C Celsius (oC)
- Automatic
- 3000 PSI
- Horizontal Auto Tie Baler
- 415 V Volt (v)
- NA (For Corrugated Paper Scrap)
- Automatic Lubrication
Continuous Auto Tie Scrap Baler Machine for Carrugated Scrap Trade Information
- Cash in Advance (CID)
- 10 Unit Per Month
- 1 Week
- No
- Terms and Conditions Delivery Within 15 Days from the date of receipt your confirmation order copy duly signed and stamped along with advance payment. Terms of Payments 50% as advance along with the order & balance 50% against Performa invoice prior to dispatch along with forms. Taxes & Duties extra All the Govt. / Local Taxes and duties shall be charged extra at the prevailing rate at the time of dispatch. However present rates of taxes are as follows: IGST: IGST 18% HSSN CODE: - 8462 Forwarding Charges Prices are based on the cost of material, component, labour and statutory obligations ruling at the date of tender or contact and may be revised and varied by JHP should these price increase. Such increase may be based by JHP on the market price of raw materials and components. Unless otherwise agreed prices are strictly ex-JHP Works and do not include the cost of packing, carriage, freight and insurance which will be charged to or paid by the Buyer. If amicably decided then the Company will arrange for packing of the goods on behalf of the Buyer at an extra charge of @ 10% Inspection Inspection can be carried out at our works prior to dispatch if so desired by you. Dispatch All the Company s goods are forwarded at the Buyer s own risk. In case of goods for export or goods sold delivery ex the Company s Works the Company cannot accept responsibility for damage or delay during transit unless it has specifically agreed in writing to cover such risk by insurance Performance, Weight, Measurement and Power Although carefully computed, must be considered approximate only and are not guarantee. Force Majure If either party is delayed or hindered in or prevented from performing any of its obligations under the Agreement by reason of act of God, fire, flood, accident, explosion, breakdown or failure of plant or machinery, war, riot, civil disturbance, strike, labour dispute, acts, orders, or regulations of Government failure (whether partial or total) of or shortage in any of the Company s or its suppliers existing or contemplated sources of material (including parts & components) or fuel or labour or transport whether such failure or shortage be existing or apprehended by the Company, failure of any supplier or sub-contractor with the Company or by reason of any cause whether or not of the same nature as the foregoing beyond its control, it shall be under no liability to the other in respect of non-performance of such obligation but the time for performing the same shall be extended until the operation of causes preventing, hindering or delaying the performance thereof has ceased. Warranty The offered equipment shall be guaranteed for a period of 12 months from the date of its dispatch against and manufacturing defect only. However, warranty does not cover against misuse, mishandling, improper maintence rubber & electrical parts and brought out items. Special Note Once order is placed the buyer cannot be cancel the order, if cancellation is done no refund of Advance payment would be claimed from seller at any cost. Arbitration 1. All disputes or differences arising in future between the parties relating to this quotation shall be referred for arbitration in accordance with the provisions of the arbitration and conciliation act, 1996 based at Alwar, Rajasthan. The award made in pursuance to that shall be binding on both the parties. The sales against this quotation shall be continued during arbitration proceedings unless it is reasoned that the sales cannot possibly be continued till the matter is finally decided by the appointed arbitrators, no payment due to the company shall be withheld on account of such arbitration proceedings, unless it is the subject matter or one of the subject matters thereof, The supplier shall not pay any interest, damages (including liquidated risk purchase) etc. for non-delivery of material for the reasons beyond its control. 2. Appointment of Arbitrator Each party shall appoint one (1) arbitrator and these two (2) arbitrators shall jointly agree on and appoint the third arbitrator. If the two (2) arbitrators appointed cannot agree on a third arbitrator, the third arbitrator shall be appointed in accordance with the provisions of the arbitrations and conciliation Act, 1996 and any amendment/thereof. 3. The Language of arbitration shall be English only. 4. Binding and Liability. The award pass by the arbitrator(s) shall be binding and the sole and exclusive remedy between the parties regarding any dispute and all claims or counterclaims for the parties, their successors and assign and each shall comply in good faith with any and all rulings of the arbitrators. Installation & Commissioning 1. Exaction of the machine cable laying & termination to be done by the customers as per our specification. 2. Installation, commissioning & servicing under warranty period is free of cost only you have to bear to&Fro AC Train fare along with loading & boarding. 3. After warranty the charges of the engineer is 5000/- per day (A day is considered to be a 8 hours working hour) plus To &Fro AC Train fare with loading & boarding. 4. In case of Export all the expenses (Visa, Air Ticket, Hotel, and Local Fare Ec.) will be charge extra. Validity of the offer 30 days from the date of dispatch. All disputes subject to only Alwar Jurisdiction. [NOTE: ANY OTHER CLAUSE, WHICH IS NOT MENTIONED IN OUR OFFER, SHALL NOT BE BINDING ON US UNLESS AGREED BY US IN WRITING.] Thanking you, & awaiting your valued order. Yours faithfully For Jindal Hydro Projects Inc. Rakesh Gupta +91-986817694
- Asia
- All India
Product Description
Continuous Auto Tie Scrap Baler Machine for Corrugated Scrap is created with the intention of delivering a high production rate in a short amount of time with minimal labour. The work completed by this auto tie baler machine is equivalent to 4-6 labourers, making pressing paper, cardboard, and cans a very straightforward and redefined concept. Continuous Auto Tie Scrap Baler Machine for Corrugated Scrap installation requires a large area with level ground that is either cemented or has another form of flat surface.
Advanced Hydraulic Compression
Utilizing hydraulic compression and dual 22 kW motors, the CATB-3000C delivers consistent bale quality and high production rates. Its PLC-controlled system ensures precise, automatic cycles in under 30 seconds per bale. Automatic lubrication and an efficient oil cooler further enhance performance and extend the blade and machinery life while maintaining noise levels below 68 dB.
Enhanced Safety and Maintenance
Equipped with emergency stop, overload protection, and interlock features, the baler prioritizes operator safety during continuous operation. Maintenance is accessible and convenient with large side doors and removable panels, and the machine logs all production and maintenance activities to facilitate timely upkeep. These measures minimize downtime and optimize operational efficiency.
User-Friendly Operations and Connectivity
The CATB-3000C features a user-friendly HMI touchscreen panel and remote diagnostics capability, making monitoring and control straightforward. Its fully automatic functionalityfrom conveyor feeding to bale tyingsaves labor, increases accuracy, and achieves high precision, making it suitable for demanding industrial environments that handle corrugated paper scrap.
FAQs of Continuous Auto Tie Scrap Baler Machine for Carrugated Scrap:
Q: How does the Continuous Auto Tie Scrap Baler machine operate for corrugated scrap?
A: The machine uses an automatic conveyor for feeding corrugated scrap into its hydraulic compression chamber. Once filled, the chamber compresses the scrap into high-density bales. The PLC-controlled system then activates the automatic tie using galvanized iron wire, completing each cycle in less than 30 seconds.Q: What safety features are included in the CATB-3000C baler?
A: Safety is prioritized through emergency stop buttons, interlock mechanisms, and overload protection to prevent accidents. Operators are further protected by the balers side doors and removable panels for safe maintenance access.Q: When is the ideal time to perform maintenance on the baler?
A: The balers data logging system tracks maintenance schedules, but regular checkssuch as daily cleaning, weekly inspections of hydraulic oil (ISO VG68), and timely lubrication via its automatic systemare recommended to ensure optimal performance and longevity.Q: Where can the baler be installed and who provides installation service?
A: The baler is suitable for installation in industrial environments processing corrugated paper scrap, such as recycling plants or manufacturing units. Professional installation service is available by the supplier to ensure proper setup and safe operation.Q: What is the process for tying and ejecting bales in this machine?
A: After compression, the bale is automatically tied using galvanized iron wire without operator intervention. The finished bale is then ejected onto a discharge platform, ready for transport or storage, ensuring continuous and uninterrupted operation.Q: How is the CATB-3000C beneficial for exporters and scrap processors in India?
A: It offers operational efficiency with high-density, precision bales suitable for bulk export or recycling. High capacity, minimal manual labor, robust construction, and comprehensive connectivity options make it an excellent choice for maintaining quality and maximizing throughput.Tell us about your requirement
