Triple Action Hydraulic Baling Press Machine

Triple Action Hydraulic Baling Press Machine
Triple Action Hydraulic Baling Press Machine
Send Inquiry
Product Code : 04
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 100000.00 - 15000000.00 INR
Product Description

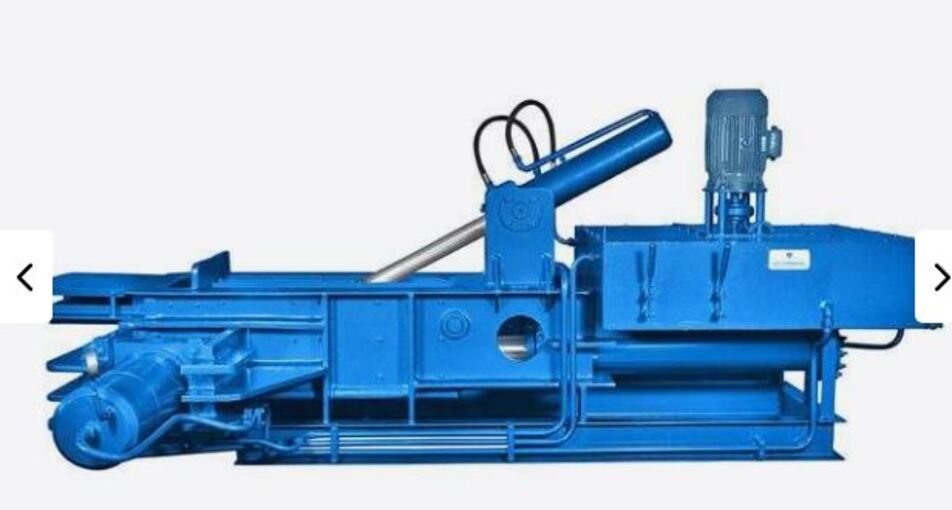

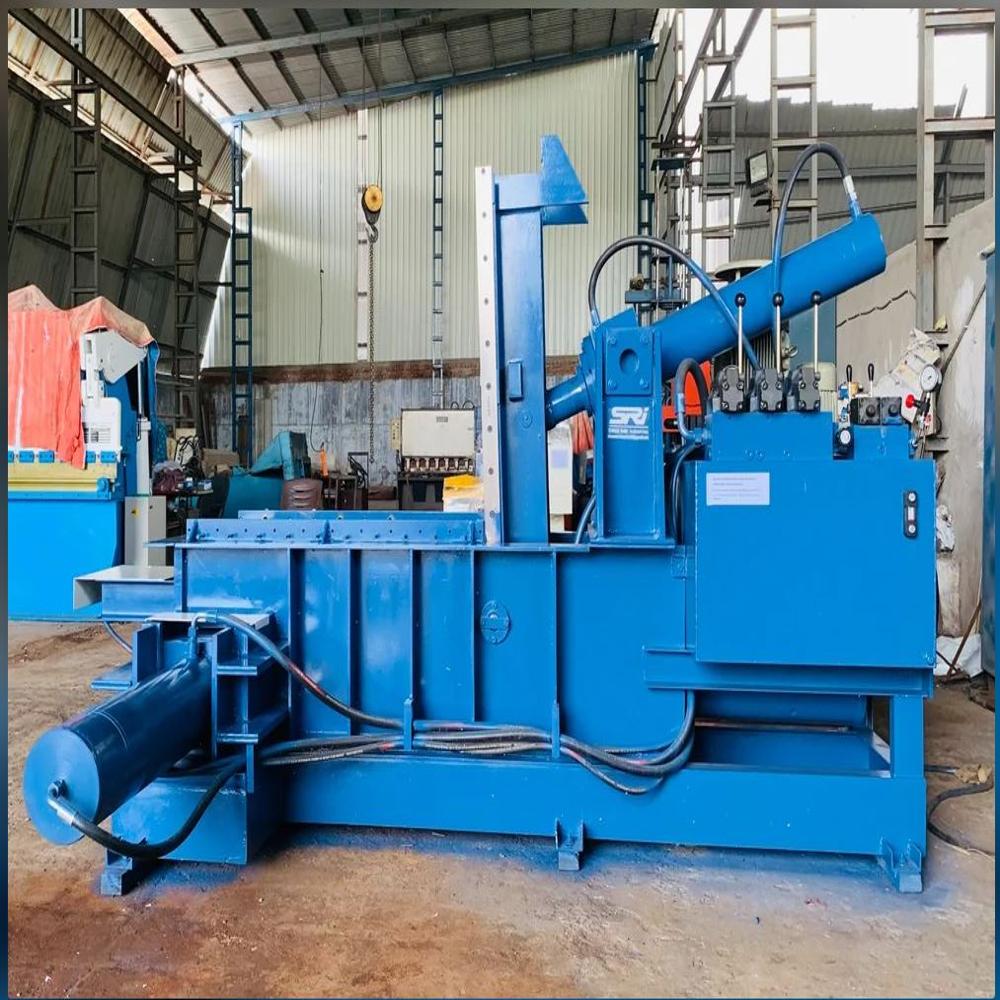

Triple Action Hydraulic Scrap Baling Press (scrap press from three side with the help of three hydraulic cylinder) is one of the heavy and most demanding machine in this category. You can use this machine to bale Plastic, Corrugated, White Paper, Different types of Commercial and heavy metals, Turning scrap, CRC Sheet Scrap and many more. This is able to produce Bales in the range of 80Kg to 700 Kg IN MS SCRAP, This machine is available in many range and bale size from 8” X 8” to 40” X 40” and more fully depends on customer customized. We use high quality parts and very heavy duty fabricated plates, valves, pipes and motors to produce this machine. The Finish Bale or Bundle release on Turnout Technic.



Triple Action Hydraulic Baling Press Machine (Turn out Model) are used for reducing three dimensions of the scrap material by using hydraulic force from three different angles. The two horizontal cylinders are arranged at right angles to each other. Vertical reduction generally takes place by hydraulic pressure on the lid cylinder. One of the horizontal cylinders presses the scrap against the ejection door of the baler. This door is raised hydraulically after baling is complete. The bundle is then removed from the chamber by horizontal cylinder.



Scrap Feeding: With Small balers, metal may be fed into the press box or chamber manually or by means of a loading hopper - A fairly large bin on the side or front of the boiler. The advantage of hopper is that they can be filled during the baling cycle, which may take a minute or more. The hopper also adds to safety of the operator as manual filing involves greater risk. All Triple Action Hydraulic Baling Press Machine (Turn out Model) models are supplied with an instruction manual. Our all press are Quality assured, Cost effective, Low maintenance. These machine are available in different bale sizes



Salient Features :



  • Option for Hand Lever operated as well as PLC Controlled Scrap Balers
  • High Speed & fully automatic Balers can be manufactured
  • Equipped with all the safety features
  • CE Marking on the balers can also be arranged on extra cost
  • Lower energy consumption with increased rate of production
  • Requires minimum maintenance
  • Reliable hydraulic system & power pack ensured by the use of imported valves of reputed make
  • Valves are easily interchangeable
  • Lower cost per ton than any other baler
  • Ease of operation
  • Each Baler is rigorously tested prior to the dispatch
  • Third party Inspection can also be arranged
  • Spare parts are easily available across the globe
  • Heavy duty construction of the balers
  • Can be customized as per the specifications of the clients
  • Single compact unit mounted over I -Beam (girders)
  • Hydraulic Accessories are provided to avoid accident
  • No major civil foundation is required
  • Replaceable wear resistance plate for long life of the baling chamber
  • Shearing blades on the edges of the chamber and door to shear excess and oversize scrap.
  • Heat exchanger (optional) for keeping oil cool
  • The offered range is widely acknowledged owing to their attributes such as:
  • Ease to operate
  • Durability
  • High tensile strength
  • Ability to withstand pressure
  • Resistance against corrosion
  • Quality assured
  • Cost effective
  • Low maintenance



Technical Specifications


Pressed Bale

18" x 18" x Variable

Condition

New

Oil tank capacity (Litres)

700 Liters

Usage

Indusrial

Type of Unloading

Top with the help of hydraulic ejector provided

Type of Loading

Manually from Top

Type of Control

03 Nos. of Hand lever



Charging Chamber

55" x 30" x 26"

Pressed Bale

18" x 18" x Variable

No. of Hyd. Cylinders

05 Nos.

Working Pressure

3000 PSI

Electric Motor

25 H.P. 1440 R.P.M. 3 Phase,

Oil Drive

Radial Plunger pump

Oil Tank Capacity

700 Liters

Cycle Time

60 to 80 Sec.

Weight of Bale (Approx)

60 to 75 Kg

Hard Plate Lining

Provided

Type of Control

03 Nos. of Hand lever

Type of Loading

Manually from Top

Type of Unloading

Top with the help of hydraulic ejector provided

Trade Information
  • Supply Ability
  • 10 unit Per Month
  • Delivery Time
  • 1 Months
